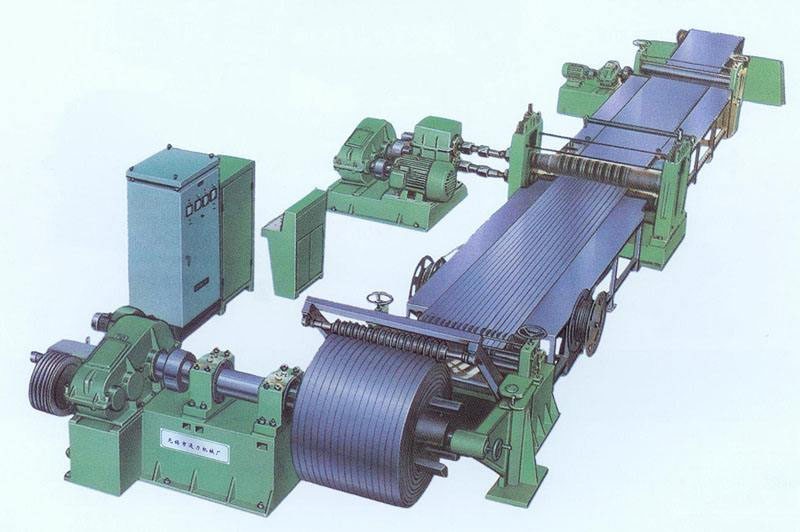

Introduction to longitudinal cutting line products
Longitudinal cutting line,also known as longitudinal cutting unit,slitting machine,cutting machine,scissors,is mainly used for slitting and cutting of coil materials such as tinplate,galvanized iron,silicon steel sheets,cold-rolled steel strips,stainless steel strips,aluminum strips,and steel strips.It is a device used in the transformer,motor industry,and other metal strip cutting industries to cut metal coil materials into strips of various widths required,and then harvest the strips into small rolls for use in the next process.
The types of longitudinal cutting lines are divided into:1.According to the thickness of the board that can be longitudinally cut,they are divided into thin plate longitudinal cutting lines(processing thickness 0.1-3.0mm)and thick plate longitudinal cutting lines(processing thickness 3.0-6.0mm).2.According to the longitudinal cutting metal material,it can be divided into copper strip longitudinal cutting wire,stainless steel longitudinal cutting wire,cold plate longitudinal cutting wire,silicon steel longitudinal cutting wire,and tinplate longitudinal cutting wire.3.According to the degree of automation,it can be divided into fully automatic longitudinal cutting line and semi-automatic longitudinal cutting line.This product is mainly suitable for transformers,motors,household appliances,automobiles,building materials,packaging industries,etc.
The process flow of this product is as follows:feeding on the feeding trolley-unwinding on the unwinding machine-discharging rack-unwinding storage pit-longitudinal cutting of the circular shear machine-waste collection edge mechanism-transition frame-tension mechanism-winding machine-unloading trolley-hydraulic components-electrical control system-pneumatic components.
Kaiping machine manufacturer: Zibo CNC Machinery Co., Ltd. specializes in Kaiping lines, slitting lines, Kaiping machines, etc., with direct sales from the manufacturer. Welcome to inquire 網(wǎng)站地圖
