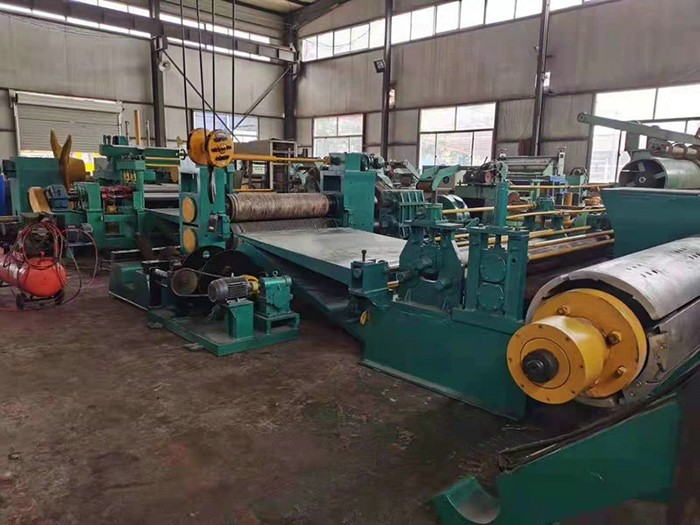

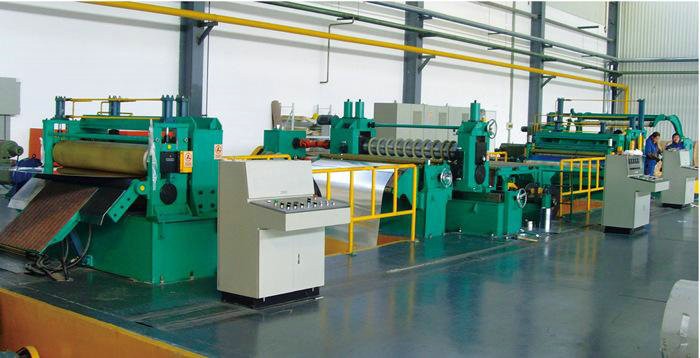

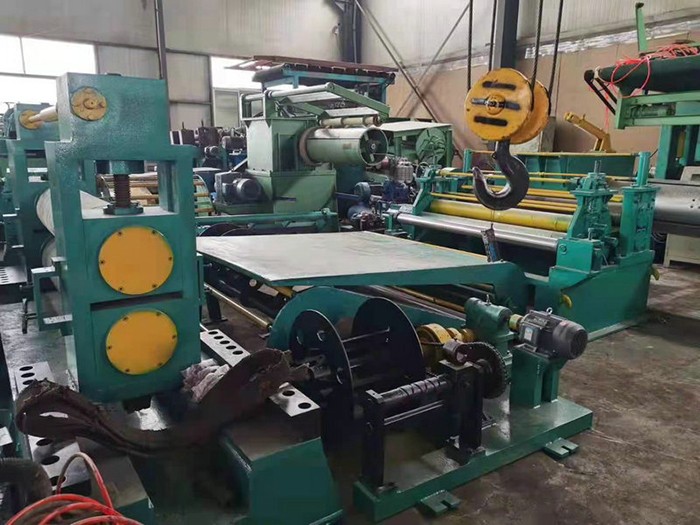

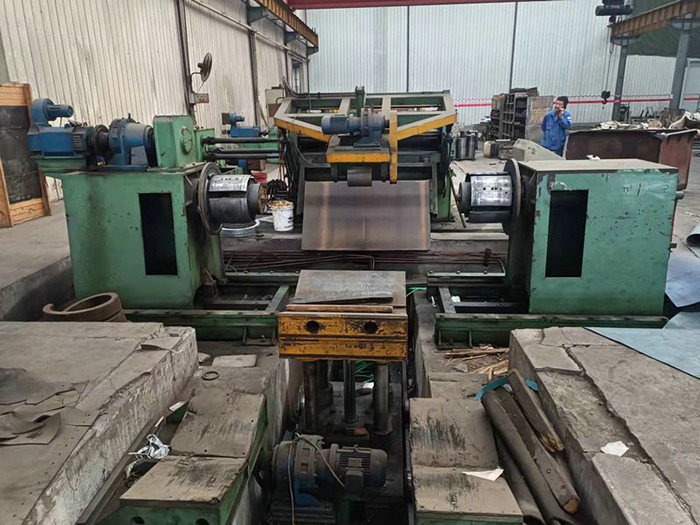

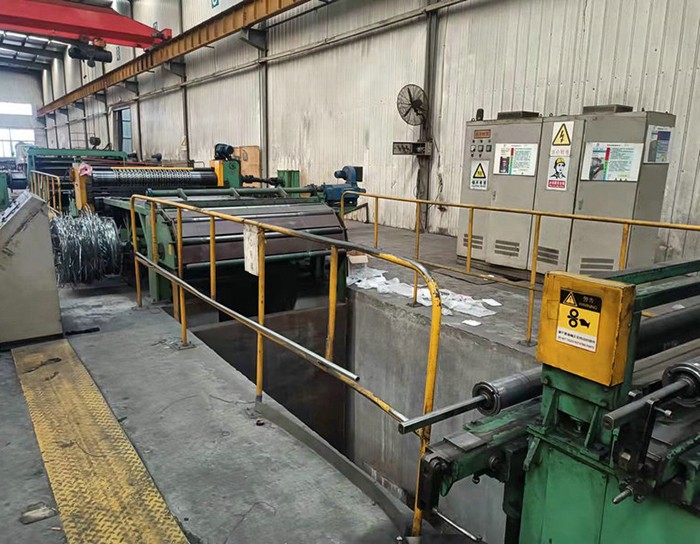

slitting line

Applicable industries:
Mainly suitable for transformers, motors, household appliances, automobiles, building materials, packaging industries, etc.
Classification of longitudinal cutting lines:
1. According to the thickness of the board that can be longitudinally cut, it is divided into thin board longitudinal cutting line (processing thickness 0.1-3.0mm) and thick board longitudinal cutting line (processing thickness 3.0-6.0mm).
2. According to the longitudinal cutting metal material, it can be divided into copper strip longitudinal cutting wire, stainless steel longitudinal cutting wire, cold plate longitudinal cutting wire, silicon steel longitudinal cutting wire, and tinplate longitudinal cutting wire.
3. According to the degree of automation, it can be divided into fully automatic longitudinal cutting line and semi-automatic longitudinal cutting line.

Main technical parameters:
Generally speaking, longitudinal cutting lines are non-standard products designed and manufactured according to customer requirements.
Taking the typical silicon steel sheet longitudinal cutting line XH1250ZS6 in the metal thin plate longitudinal cutting line as an example: (Specific values such as load capacity, number of sections, line speed, section uniformity, section width, straightness, etc. can be determined according to the requirements of the user)
1. Cutting material: silicon steel sheet
2. Cutting material width: 1250mm
3. Shear material thickness: 0.15-0.5mm
4. Roll material to large diameter: Φ 1800mm

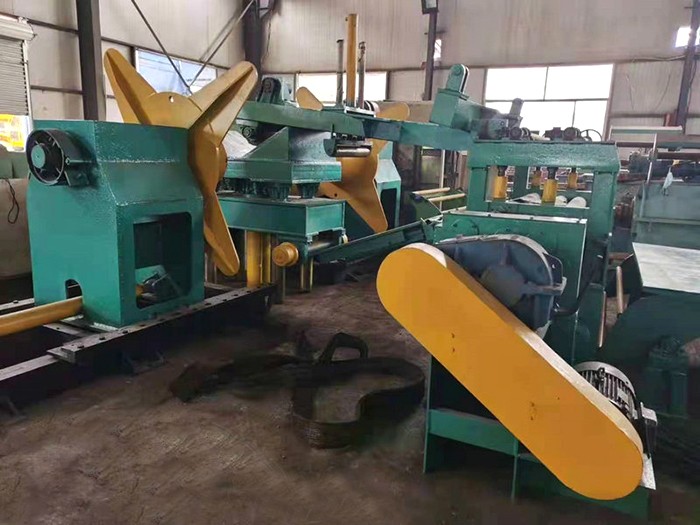

5. Open book expansion and contraction range:
Φ460～520mm570～610
6. Roll material to maximum weight: 7T
7. Maximum cutting line speed: 200m/min
8. S-degree error: ≤ 0.05mm
9. Cutting edge burrs: ≤ 0.02mm
