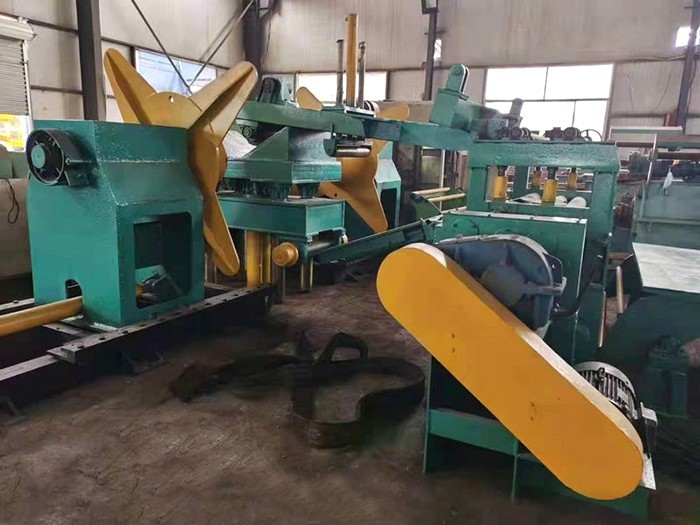

As is well known,the longitudinal cutting line is a device used in the transformer,motor industry,and other metal strip cutting industries to cut metal coils into strips of the desired width,and then harvest the strips into small rolls for use in the next process.Sometimes there may be a situation where the longitudinal cutting blade bends.What is the reason for this?
The reason for the bending of the longitudinal cutting blade:
When machining metal plates with longitudinal cutting lines,if the speed of the correction device is too fast or too slow,the sickle will bend.
First,check the defects of the metal plate,then adjust the accuracy of the metal slitting line,and then control the winding and tension of the metal plate.Of course,specific issues need to be analyzed on a case by case basis.
The metal plate itself is not smooth.When winding the coil,the internal stress is not completely eliminated.When the coil is sheared,internal stress will act on the sickle,causing it to bend.
If there are external forces bending outward on both sides of the plate,the Flat noodles will bend.
The burrs on the metal sheet of the longitudinal cutting line caused the sickle to bend.When cutting metal plates with a slitting machine,the gap adjustment of the blades is unreasonable,resulting in burrs.The larger the gap,the larger the burrs.When the metal plate is rolled up,the edges will bend due to burrs.
The asymmetric gap between the upper and lower blades causes the sickle to bend.Due to the large gap between the left and right sides of the feeding trough,the indentation will be relatively large,which will cause the coil to stretch more and naturally result in a sickle bend.
When the sickle bends due to uneven tension,the tension on the baffle during winding will increase,causing the sickle to bend due to unilateral tension.
The bending of the longitudinal cutting blade mainly includes the above reasons.In the above introduction,it is not difficult to see the importance of the bending of the longitudinal cutting blade,and attention should be paid when installing the blade.
