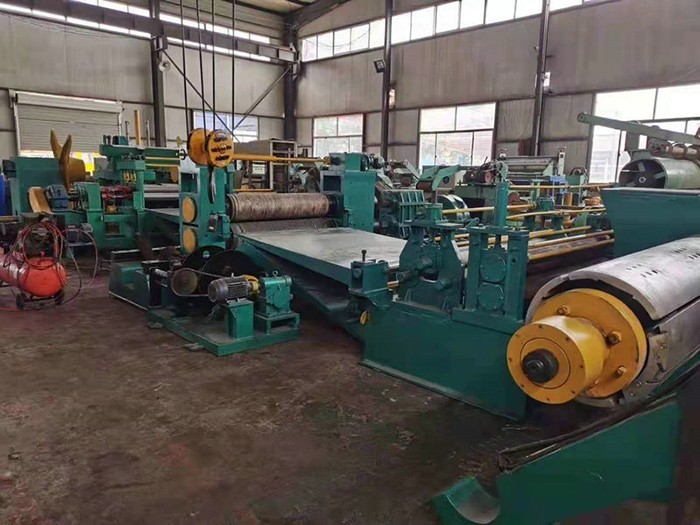

A slitting machine,also known as a slitting line,slitting machine,or slitting machine,is used to roll metal coils into strips of the desired width through unwinding,slitting,and winding.Suitable for processing cold-rolled and hot-rolled carbon steel,silicon steel,tinplate,stainless steel,and various metal materials after surface coating.
1.The longitudinal cutting line design has a reasonable structure,compact shape,high precision,high efficiency,and flexible and convenient adjustment.
2.The frame is made of welded steel plates,annealed,and processed by CNC machining.The longitudinal cutting line ensures high strength and precision.
3.The manufacturing process of the longitudinal cutting machine strictly follows the mechanical design specifications,and the leveling roller material is made of bearing steel GCr15.
4.The working shaft support of the longitudinal cutting line adopts heavy-duty bearings,combined with a lubrication system,which has a long service life.
The equipment composition of the longitudinal cutting line generally includes:unwinding machine,guide device,unwinding tension device,cutting head shear,feeding table,loop,disc shear,guide roller,machine transfer roller,imported clamping device,constant tension winding device,edge crusher,waste truck,winding machine,lining paper device,etc.
