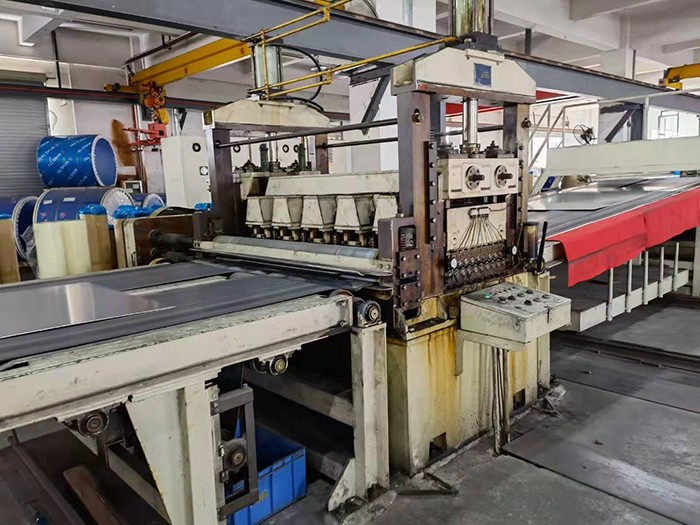

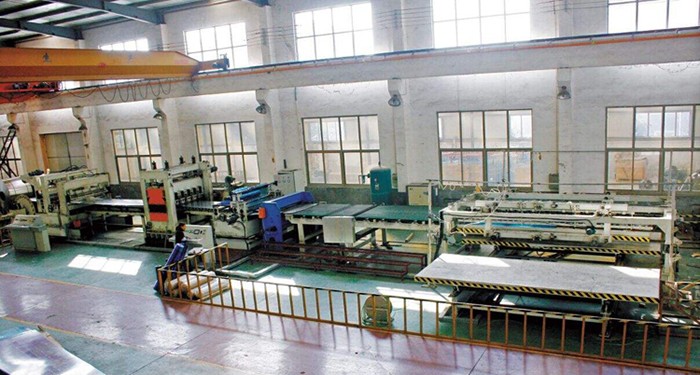

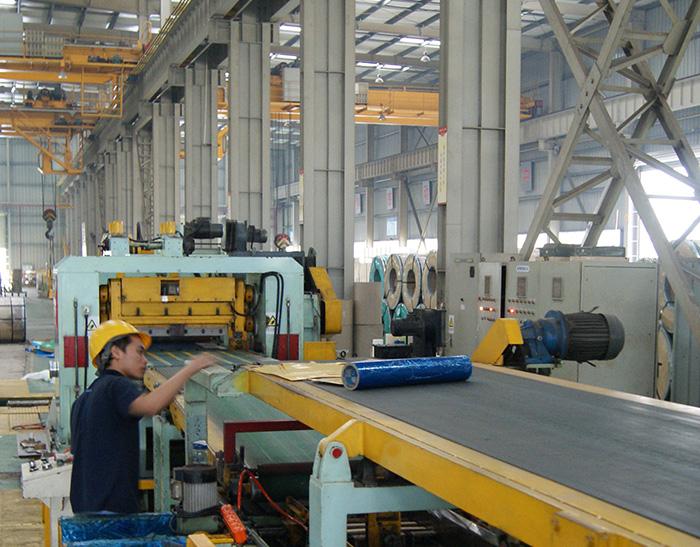

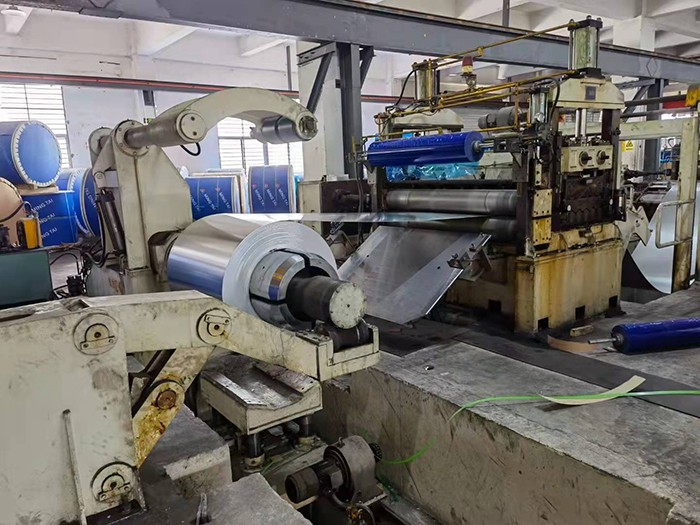

This series of flying shear lines can cut 150 pieces of sheet metal per minute, with a running speed not exceeding 80 meters per minute. Adopting a six fold multi roll leveling machine, the sheet metal is flat and free of scratches;

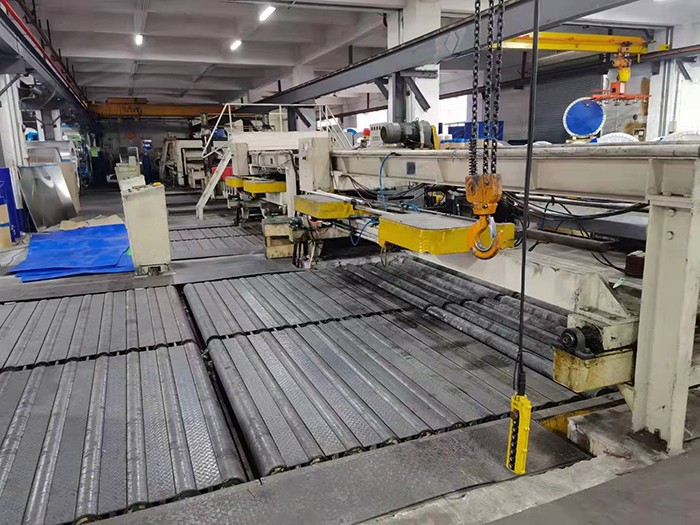

The flying shear is driven by a servo motor and has high cutting accuracy; Dual station stacking, fast and efficient.
Flying shear wire is suitable for processing cold-rolled carbon steel, silicon steel, tinplate, stainless steel, and various metal materials after surface coating.
Specification parameter table:
|
|
加工板厚 |
加工板寬 |
剪切精度 |
至高線速度 |
至高剪切次數(shù) |
開卷重量 |
|
ERCL-2x650 |
0.2-2 |
100-650 |
±0.3 |
80 |
150 |
5 |
|
ERCL-2x800 |
0.2-2 |
100-800 |
±0.3 |
80 |
150 |
8 |
|
ERCL-2x1300 |
0.3-2 |
400-1300 |
±0.3 |
80 |
150 |
15 |
|
ERCL-2x1600 |
0.3-2 |
400-1600 |
±0.3 |
80 |
150 |
20 |
|
ERCL-3x800 |
0.3-3 |
100-800 |
±0.3 |
70 |
150 |
8 |
|
ERCL-3x1300 |
0.3-3 |
400-1300 |
±0.3 |
70 |
150 |
15 |
|
ERCL-3x1600 |
0.3-3 |
400-1600 |
±0.3 |
70 |
150 |
20 |
